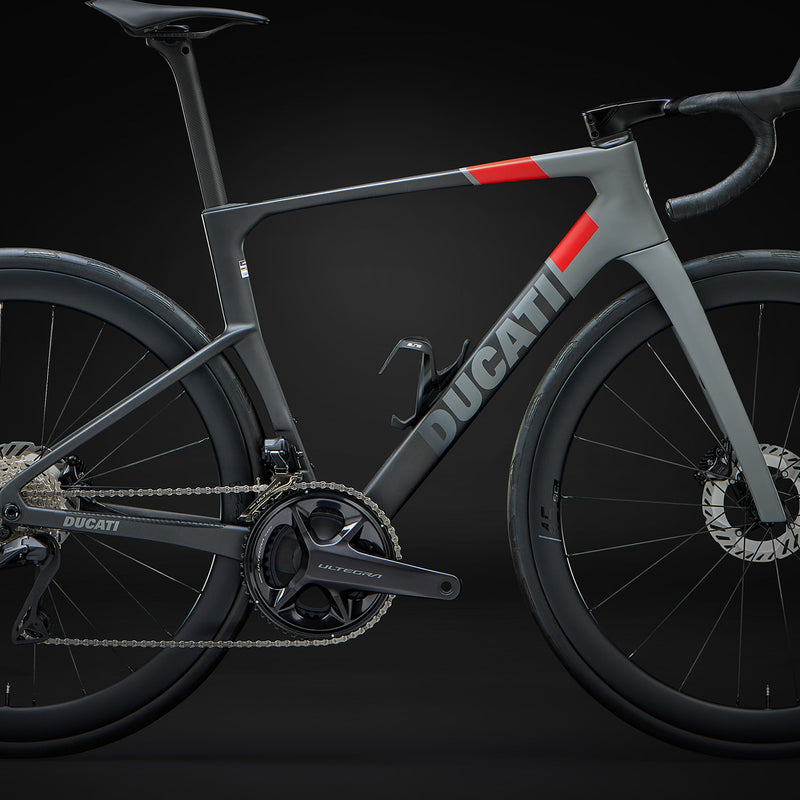

DUCATI_GR-Carbo-VISION_PDP-Highlight_07-telaio_1402x1402_Mob

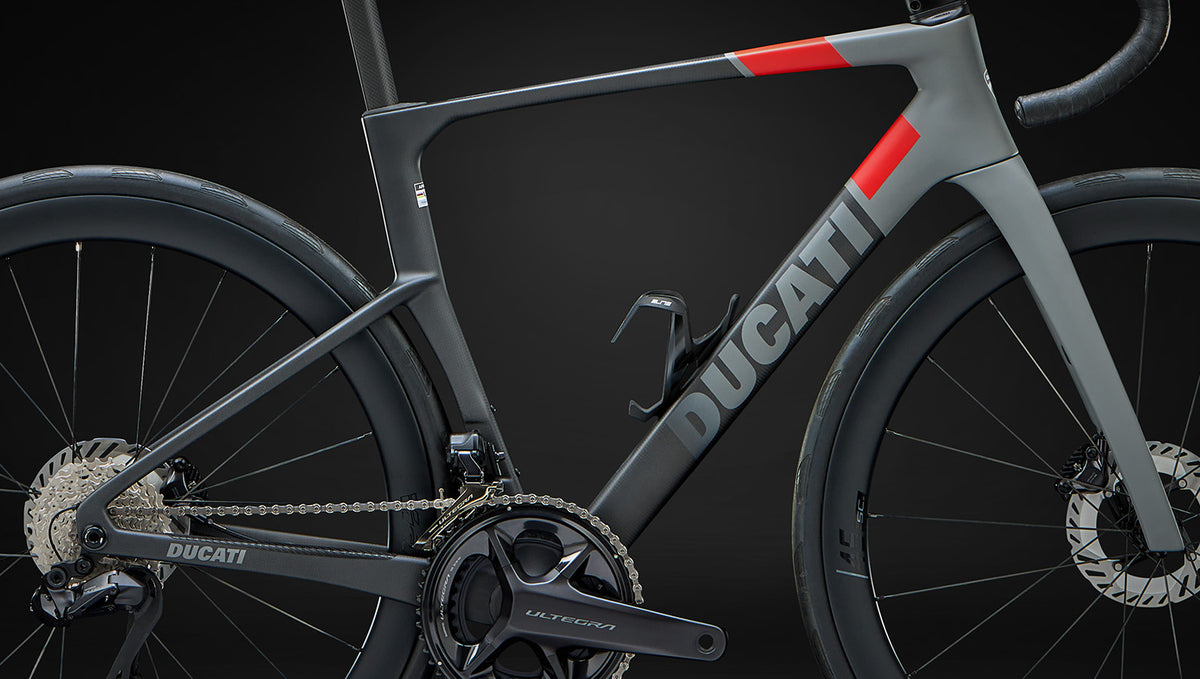

Carbon Monocoque Frame | Made in Italy carbon fibre monocoque frame, manufactured using a single-mould lamination process to ensure structural continuity and maximum control over fibre orientation. Aerodynamic profiles developed and validated through CFD simulations, featuring an “All-Round” geometry and a responsive, stable and versatile setup for racing and long-distance riding. Compatible with tyres up to 32 mm wide.

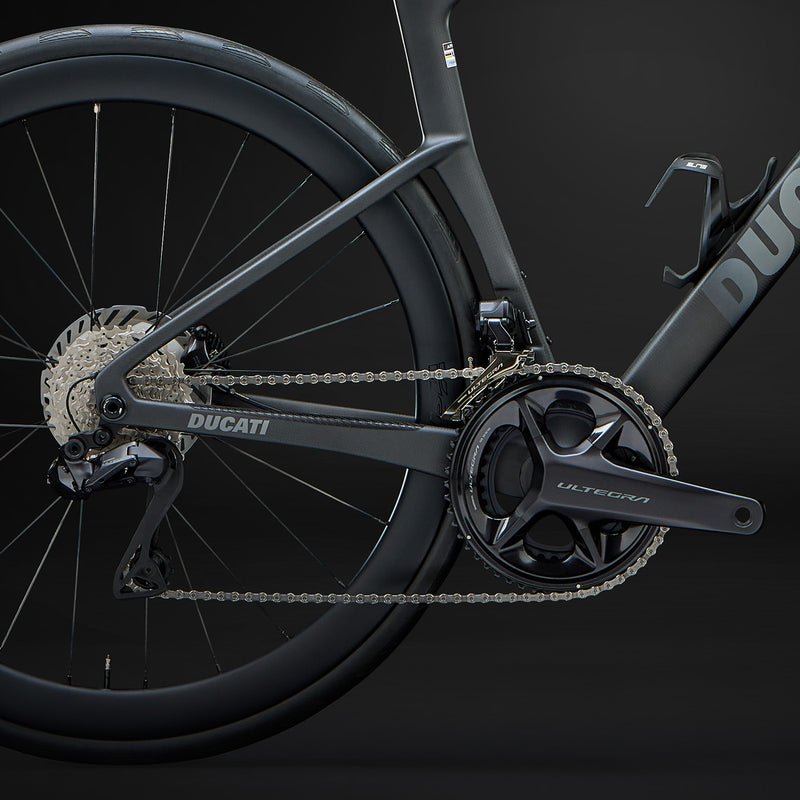

DUCATI_GR-Carbo-VISION_PDP-Pin_05-gruppo_1402x1402_Mob

Shimano Ultegra Di2 | The complete Shimano Ultegra Di2 groupset combines high-level performance, precision and reliability in a platform designed for high-performance road cycling. The Di2 electronic system delivers fast, precise and perfectly repeatable shifting, even under load, ensuring smooth and efficient drivetrain management in every riding situation.

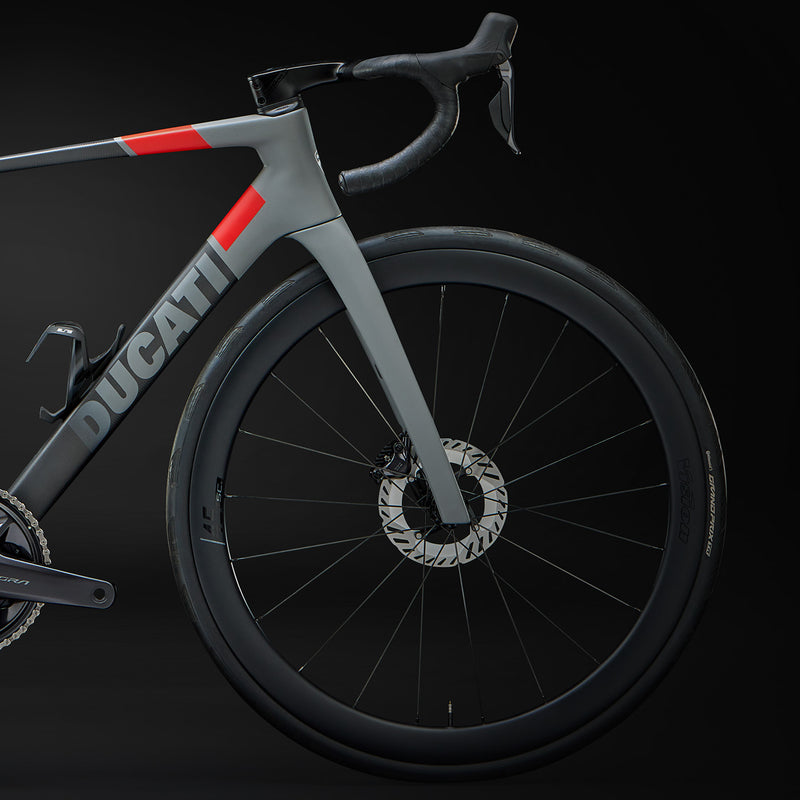

DUCATI_GR-Carbo-VISION_PDP-Pin_03-ruota_1402x1402_Mob

Vision SC 45 Wheels | The Vision SC 45 carbon wheels feature a 45 mm rim depth and a 23 mm internal width, optimized for modern 28–32 mm tires to deliver greater comfort, stability and low rolling resistance. The Tubeless Ready construction, hubs with sealed bearings and Straight Pull aero spokes ensure excellent smoothness, reliability and efficient power transfer. With a weight of approximately 1,590 g per pair, the SC 45 wheels are ideal for road use, from everyday rides to racing.

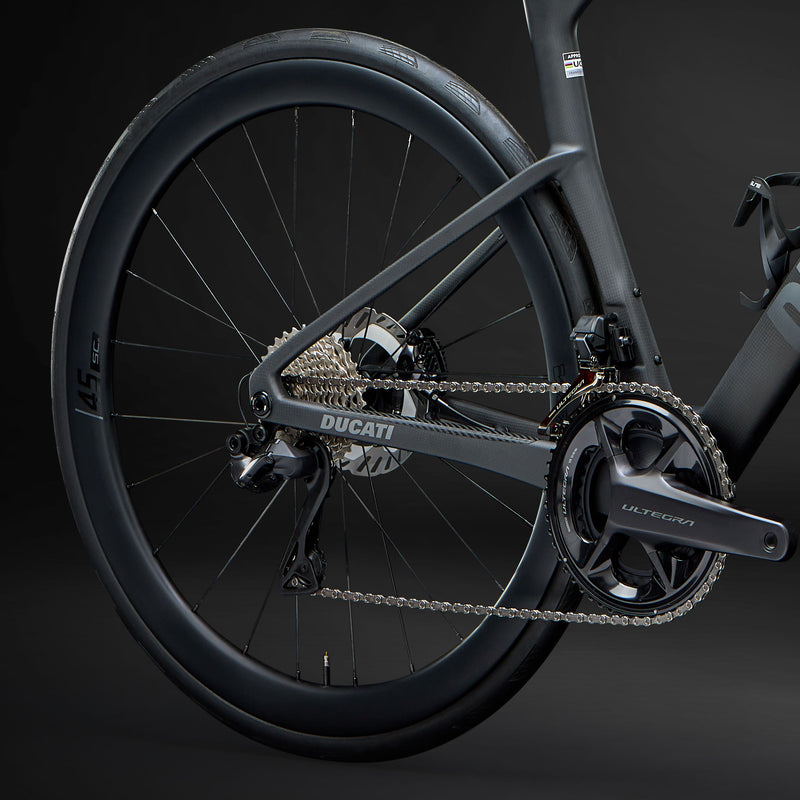

DUCATI_GR-Carbo-VISION_PDP-Pin_04-copertoni_4_Mob

Continental Grand Prix TR | 30 mm Tubeless Ready tyres featuring the BlackChili compound, designed to deliver an effective balance of grip, low rolling resistance and puncture protection.

DUCATI_GR-Carbo-VISION_PDP-Pin_01-sella_1402x1402_Mob

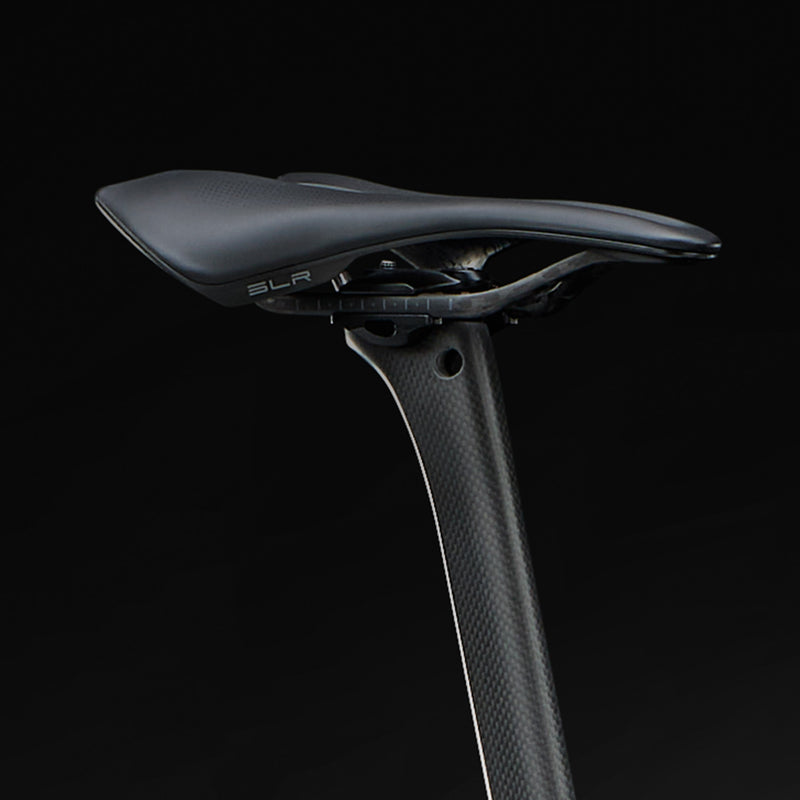

Selle Italia SLR Carbon L3 | A high-performance saddle designed to combine lightness, support and comfort on the most demanding rides. The carbon construction helps reduce weight and increase stiffness, while the ergonomic shape promotes a stable and efficient riding position, providing support and control even during the most intense efforts.

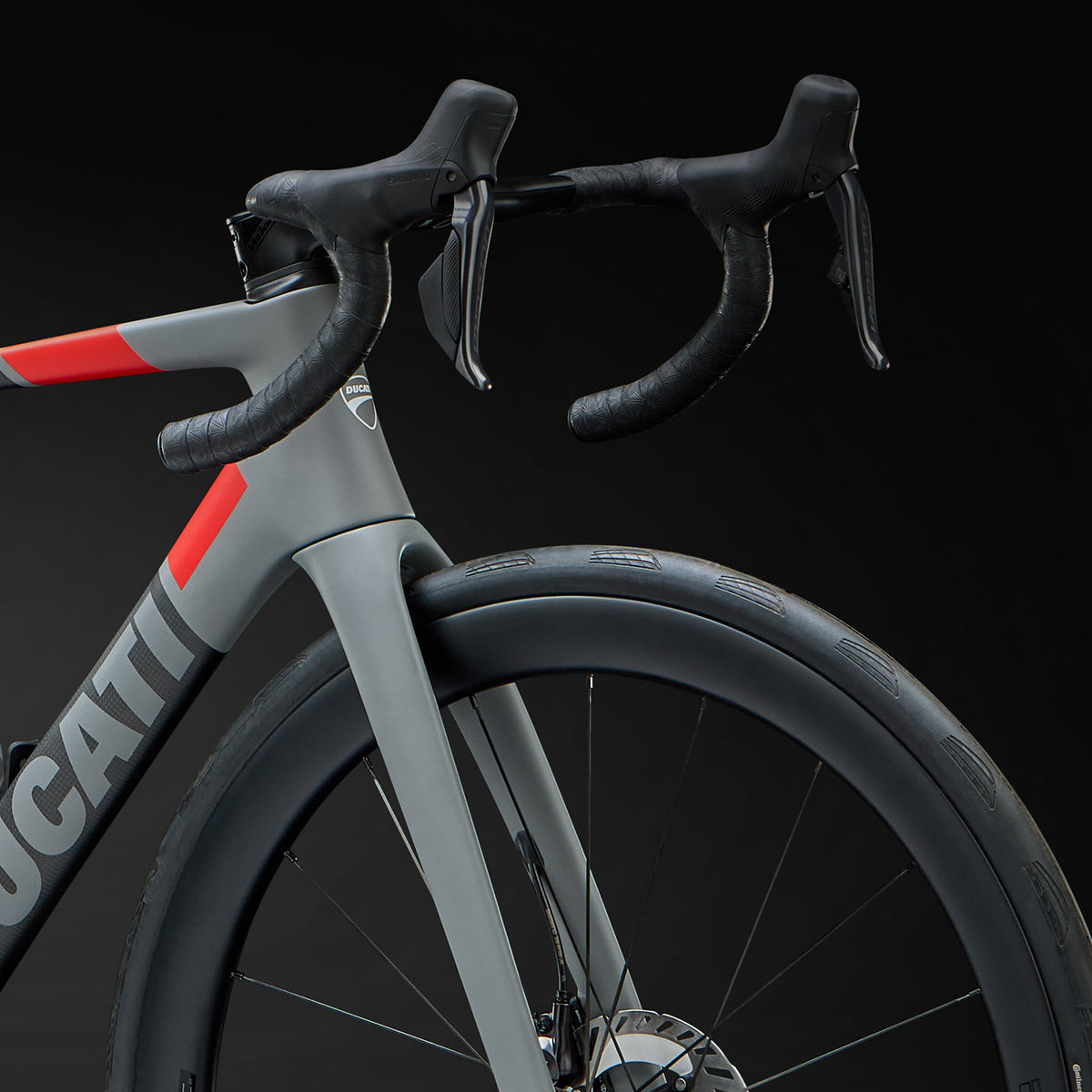

DUCATI_GR-Carbo-VISION_PDP-Pin_02-manubrio_1402x1402_Mob

Vision Metron 5D SMR Integrated Cockpit | Integrated carbon fibre cockpit designed to maximise aerodynamics, stiffness and ergonomics. The distinctive Aero-Ergo shape with a 10° forward angle promotes a natural arm position, improving comfort, breathing and control. The SMR (Semi-Integrated Cable Routing) system enables semi-integrated cable routing, delivering a clean look and helping reduce aerodynamic drag. Built from high-modulus carbon, it offers an excellent stiffness-to-weight ratio, making it ideal for performance-focused road cyclists.

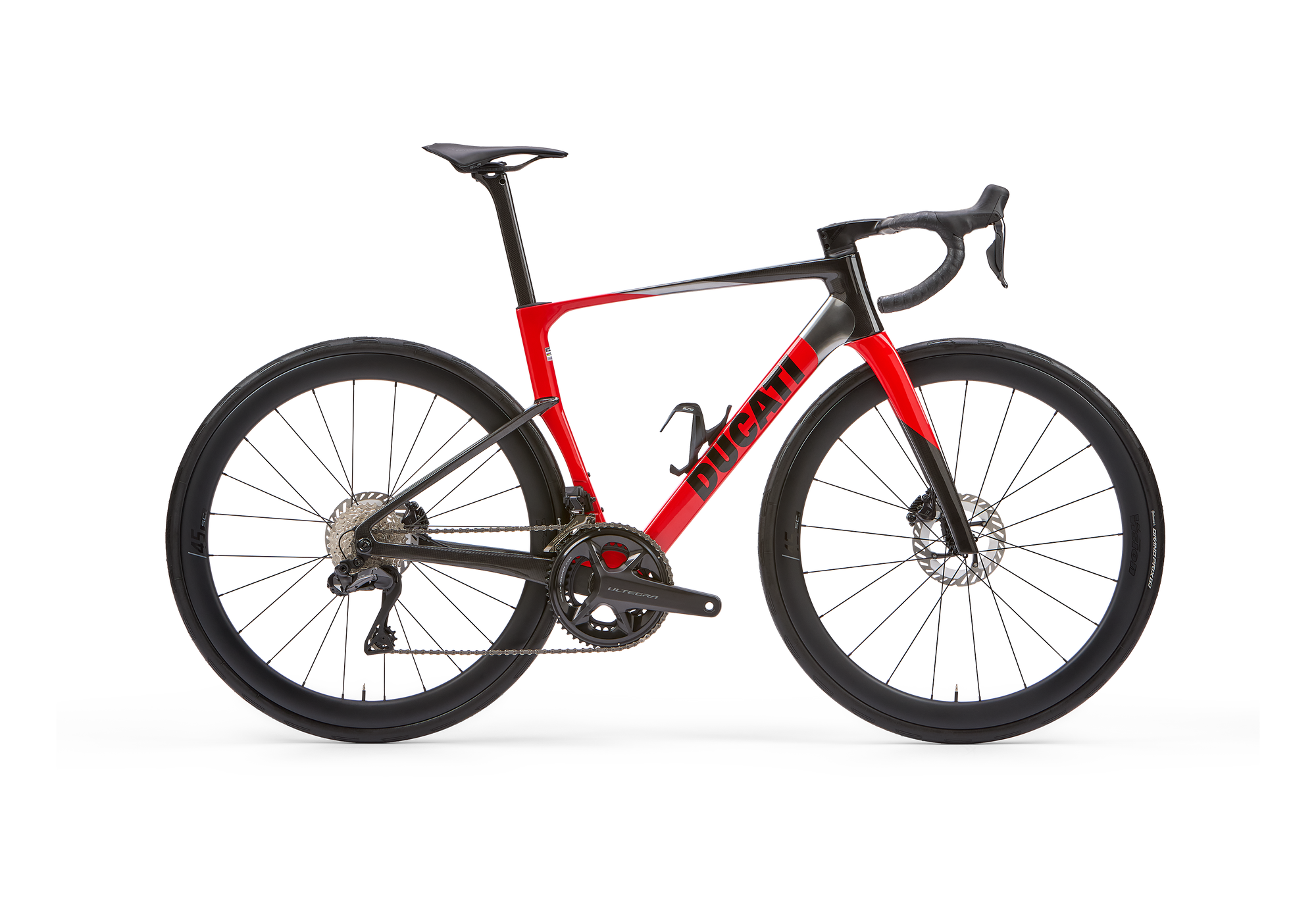

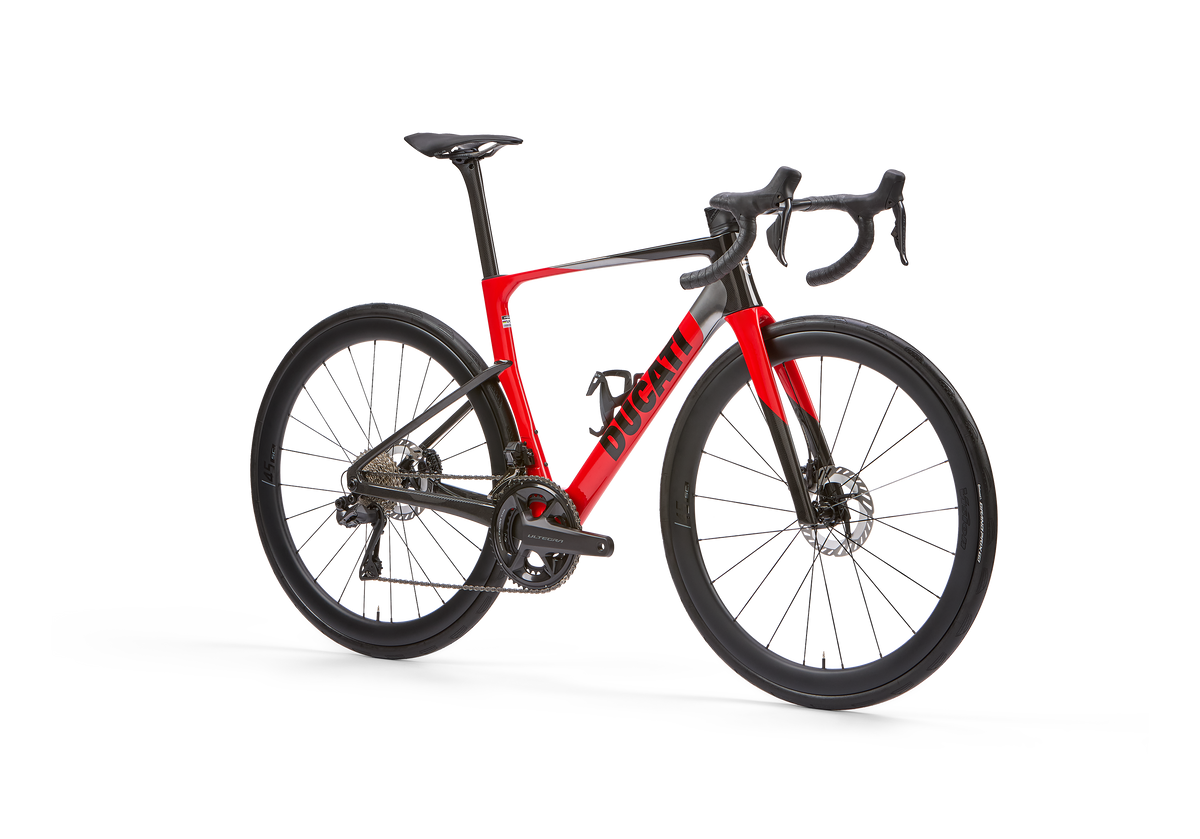

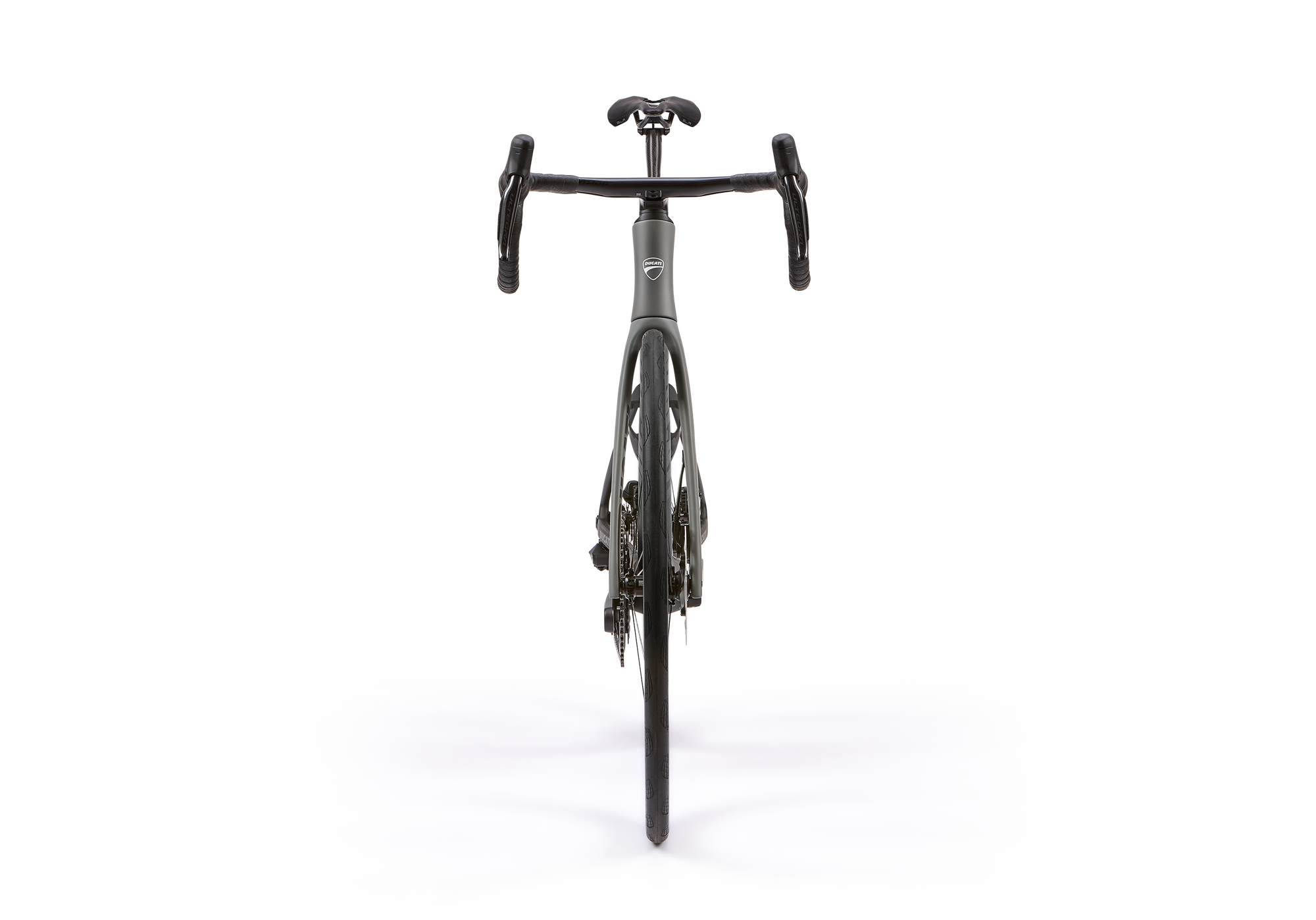

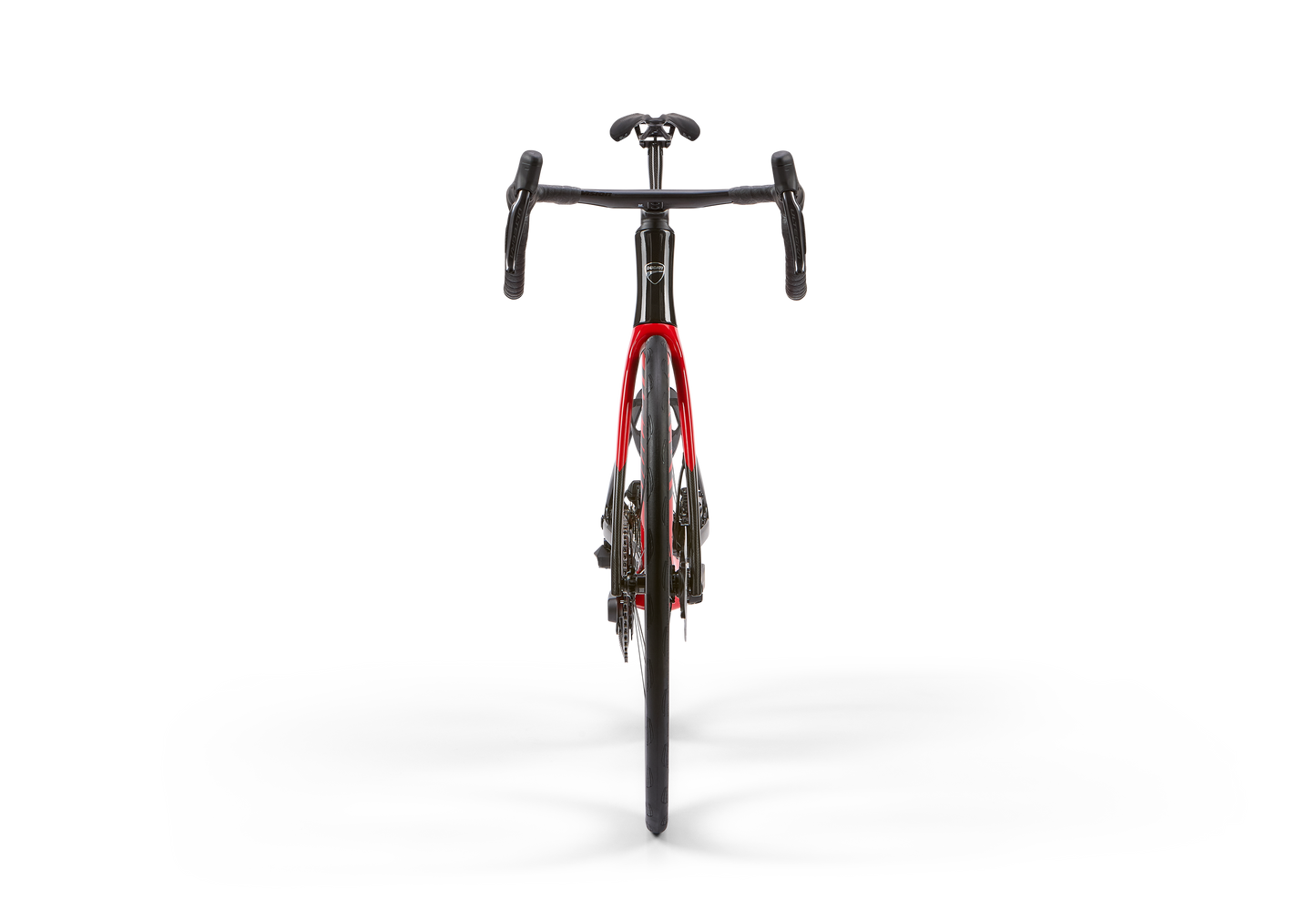

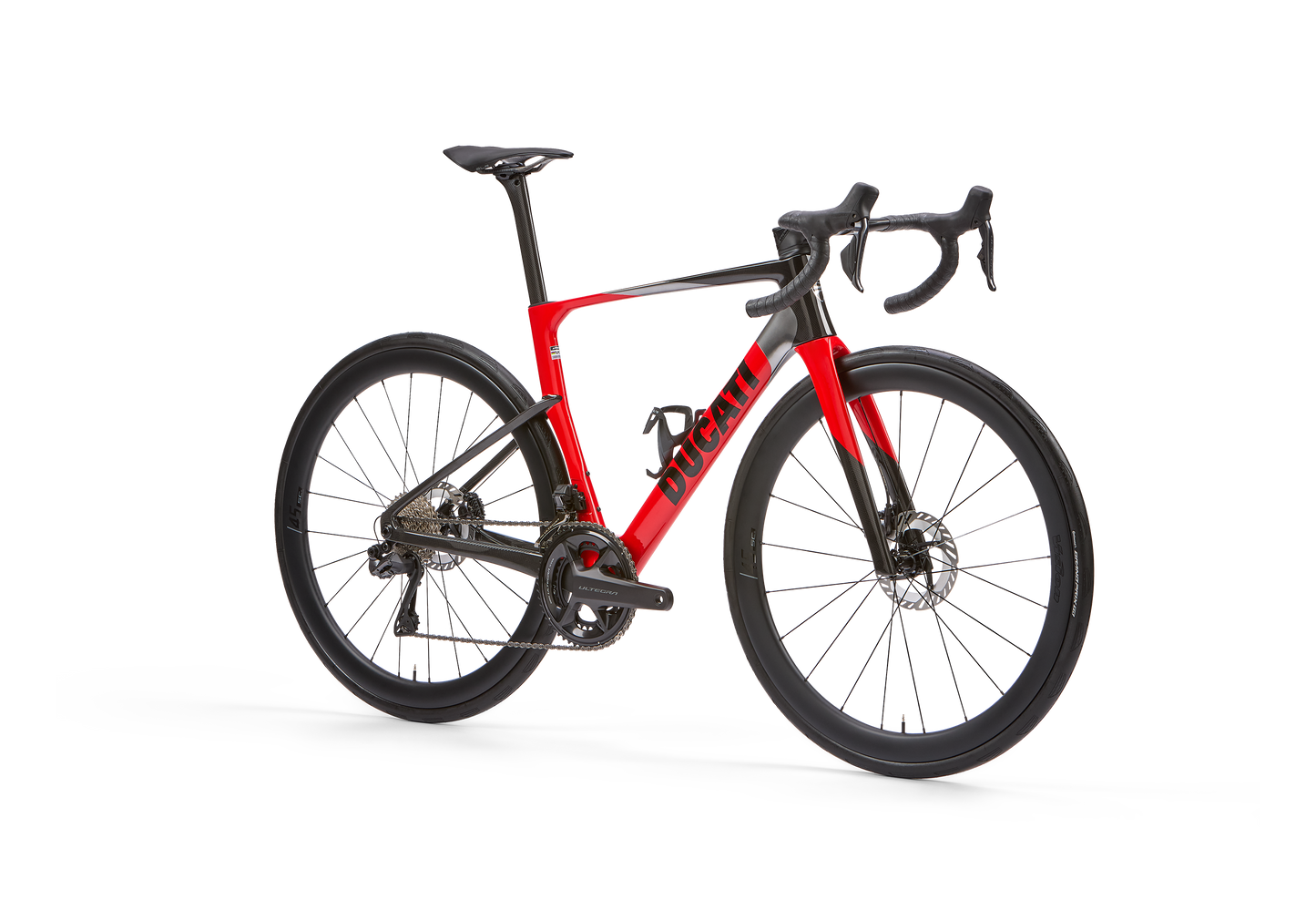

Ducati Monoscocca R

Ducati Monoscocca R

The ideal balance for advanced performance

€8.590

size Available from October 2026.
Size recommendation

color Carbon Red


CUSTOMIZE YOUR BIKE

View full details
Ducati Monoscocca R
Ducati Monoscocca R
€8.590

Ducati Monoscocca brings racing DNA to the road through a "Made in Italy" monocoque carbon fibre frame. Single-mould layup, GG 200 3K fabric and HEMT3 resin deliver stiffness, durability and an optimised weight-to-stiffness ratio for maximum precision and control.

Key features

Description

"Made in Italy" monocoque frame combining an optimal weight-to-stiffness ratio with high efficiency in all conditions. Aerodynamic focus reduces drag to improve speed and smoothness, while the race all-round geometry ensures a responsive, stable and versatile ride, suited both to competition and long-distance performance.

Technical Features

Frame
Carbon fibre monocoque – fork rake 48 mm (XS/S/M) and 44 mm (L/XL)
Front Derailleur
Shimano Ultegra Di2
Rear Derailleur
Shimano Ultegra Di2 12s
Cassette
Shimano Ultegra 12s 11-34
Chain
Shimano M8100
Crankset
Shimano Ultegra 52-36
Crank arms
XS= 165 mm, S/M= 170 mm, L/XL= 172.5 mm
Bottom Bracket
Shimano Pressfit BB92-41B
Shifters & Brake Calipers
Shimano Ultegra Di2 12s
Brake Rotors
Shimano RTCL800 160mm
Handlebar
Vision Metron 5D SMR (XS= 90x380 mm, S= 100x380 mm, M/L= 110x400 mm, XL=
Wheels
Vision SC 45 i23
Tires
Continental Grand Prix TR 30mm
Seatpost
Ducati carbon fibre
Saddle
Selle Italia SLR Carbon L3
Sizes
XS; S; M; L; XL

User Manuals

Operating Manual

OM_Monoscocca_EN.pdf

DOWNLOAD
