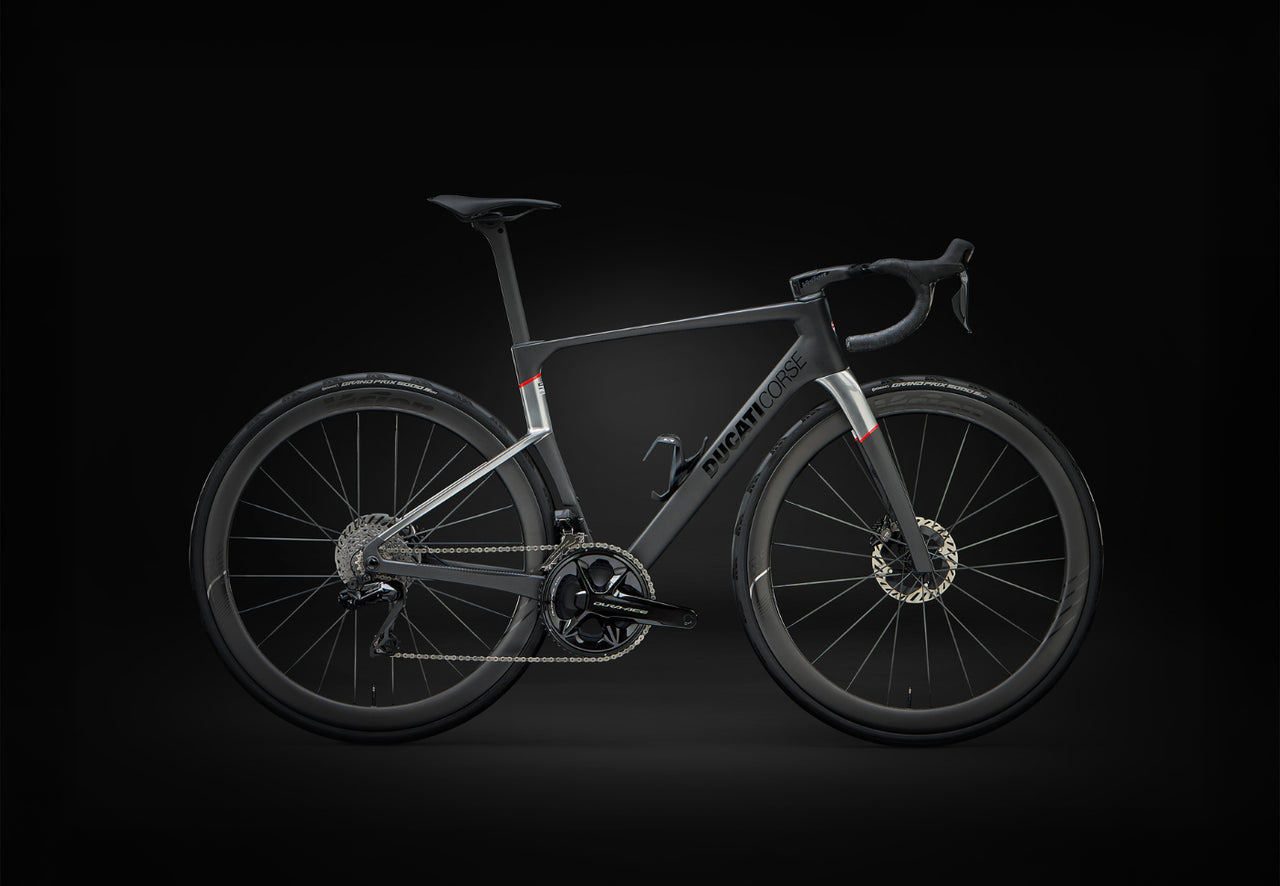

Ducati Monoscocca
A racing platform capable of delivering top-level performance in every condition.
BUY NOW
Your Race Performance
Modern Race road bikes combine low weight, stiffness, aerodynamics and comfort to deliver the best riding experience in all road conditions. Ducati Monoscocca embodies this philosophy through a Made in Italy platform developed to ensure speed, responsiveness and efficiency, thanks to a perfect balance of technology, build quality and aerodynamic research.
Carbon fiber road bike frame. Italian excellence.
The true Made in Italy monocoque
Optimised aerodynamic efficiency
Modern “All-Round” Race Geometry
The result is a modern racing platform capable of delivering high performance without the extremes typically associated with models developed exclusively for competition.
Available in 5 sizes (XS, S, M, L, XL), the frame features a fork with differentiated rake for the two largest sizes, ensuring balanced, responsive and consistent handling across the entire size range.

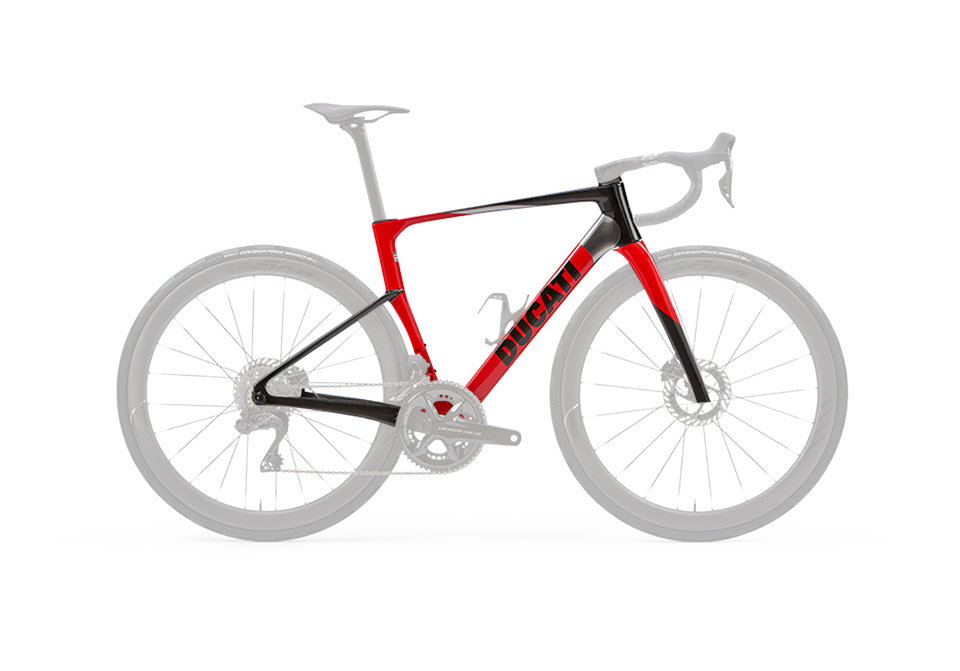

Available versions: Frameset
Dedicated to those who wish to create an exclusive and highly customized configuration.
Size guide
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Reach (A) | 377 | 382.2 | 388.3 | 397.2 | 406 |
| Stack (B) | 519 | 533 | 550 | 567 | 583 |
| Seat Tube (C) | 435 | 460 | 485 | 510 | 534 |
| Effective Seat Tube Angle (D) | 78.7° | 78.2° | 77.8° | 77.5° | 77.1° |
| Virtual Seat Tube Angle (E) | 75.7° | 75.2° | 74.8° | 74.5° | 74.2° |
| Saddle Height For Virtual Seat Tube Angle (F) | 675 | 700 | 730 | 760 | 795 |
| Effective Top Tube (G) | 517 | 531 | 546 | 563 | 581 |
| Virtual Top Tube (H) | 512 | 526 | 539 | 556 | 574 |
| Head Tube (I) | 109 | 122 | 138 | 152 | 169.8 |
| Head Tube Angle (L) | 71.4° | 71.8° | 72.3° | 73° | 73.3° |
| Chain Stay (M) | 410 | 410 | 410 | 411 | 412 |
| Front to Center (N) | 582.5 | 588.7 | 595.6 | 598.9 | 610 |
| Wheelbase (O) | 981.7 | 988 | 994.8 | 999.2 | 1012 |
| BB Drop Front/Rear (P) | 72 | 72 | 72 | 72 | 70 |
| Estimated BB Height (Q) | 272 | 272 | 272 | 272 | 274 |
| Trail (R) | 65.1 | 62.6 | 59.4 | 59.1 | 57.3 |
| Fork Length (S) | 377 | 377 | 377 | 377 | 377 |
| Rake (T) | 48 | 48 | 48 | 44 | 44 |

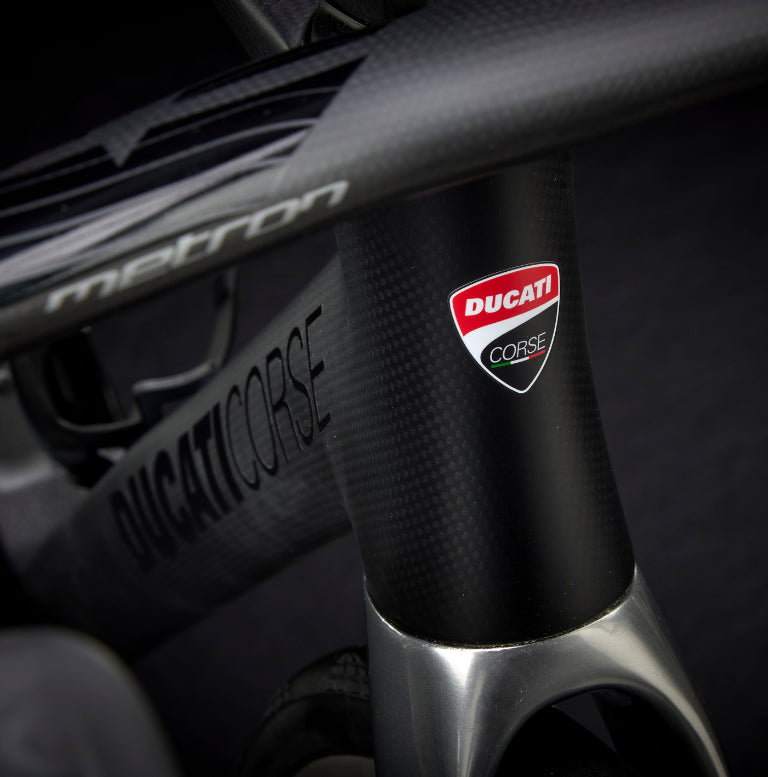

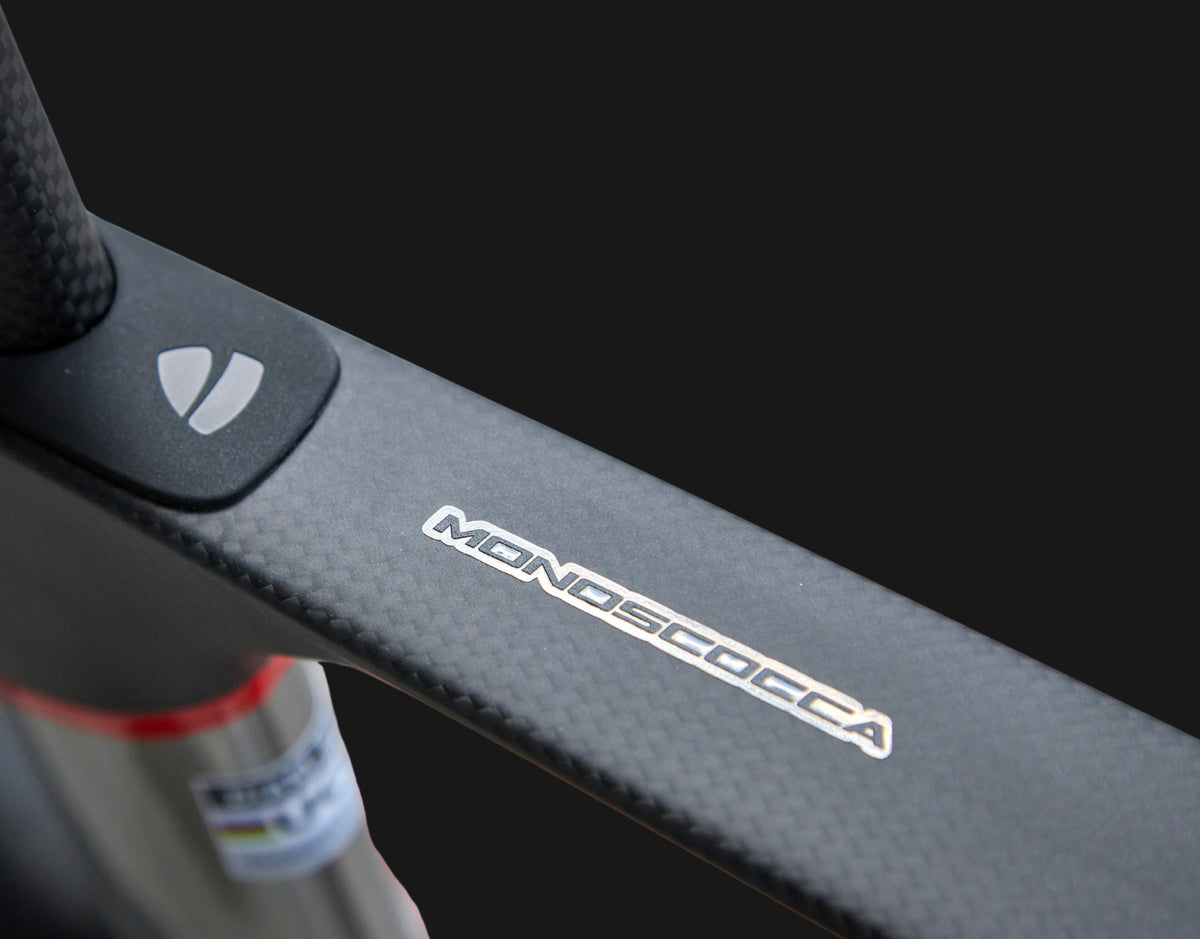

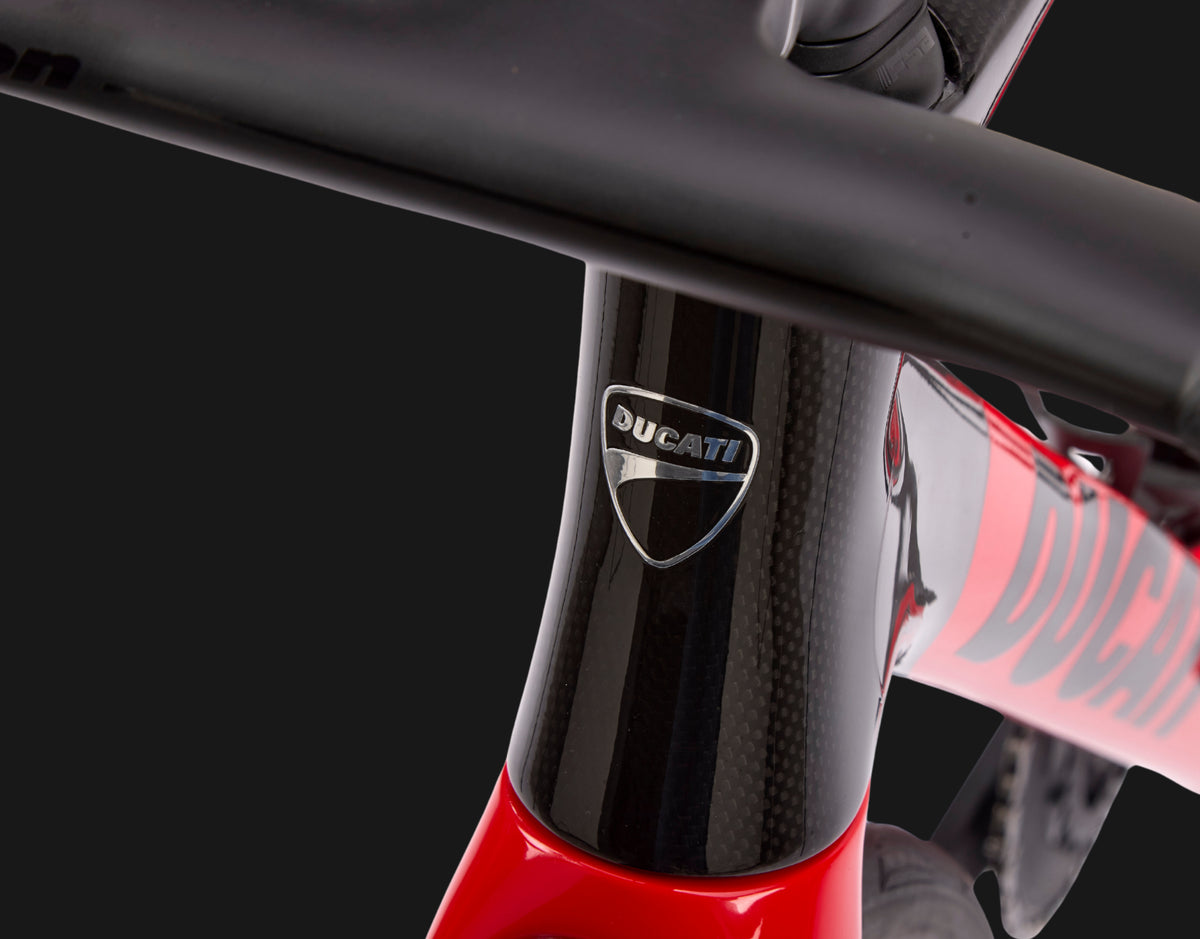

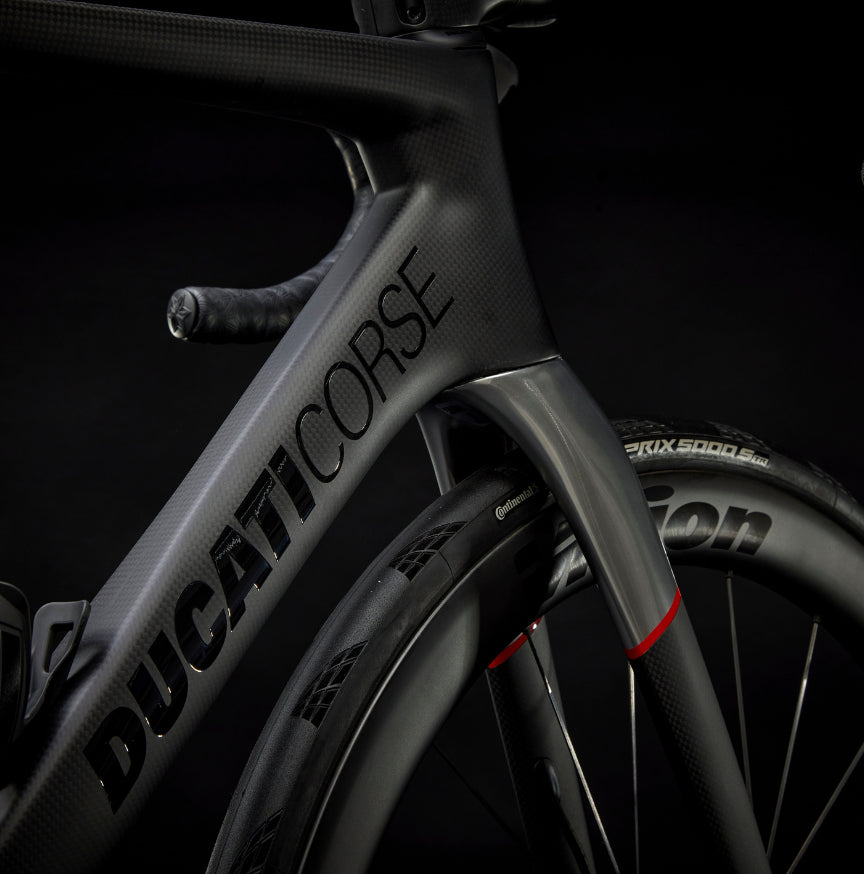

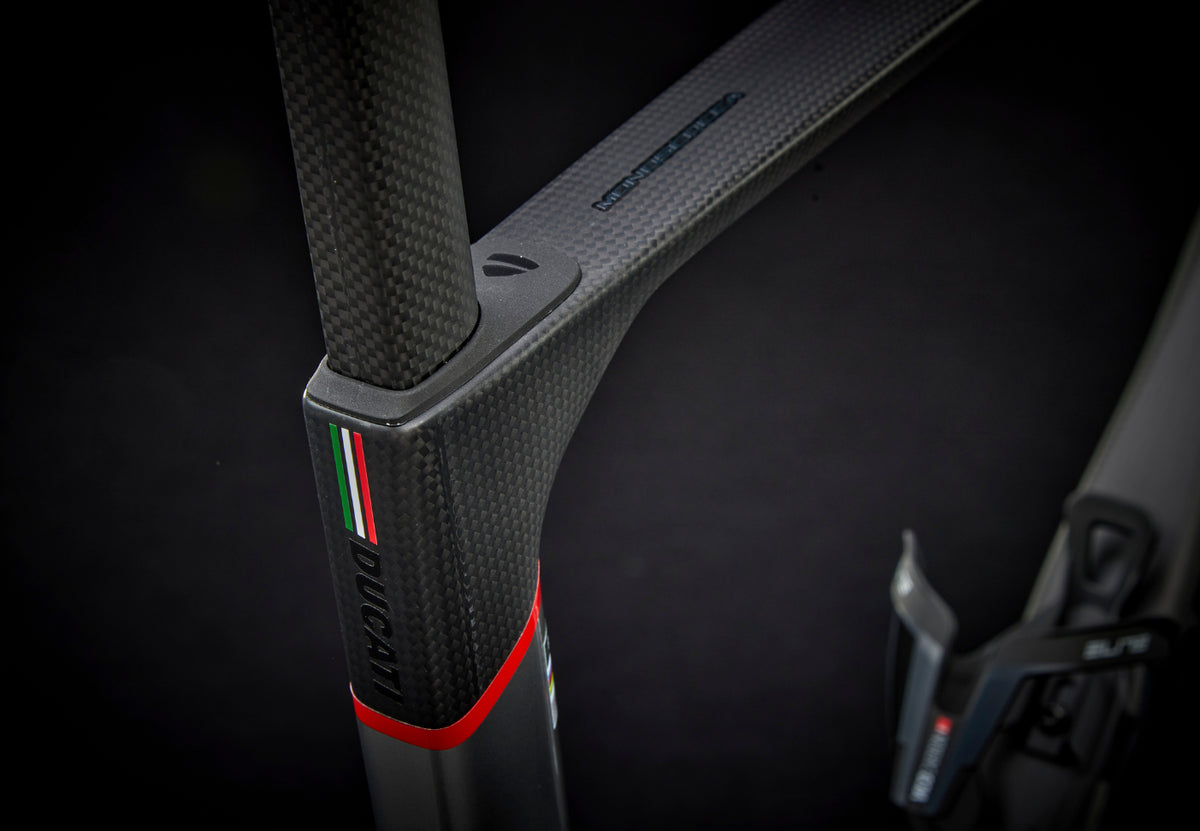

Carbon Monocoque Frame
Made in Italy carbon fibre monocoque frame, manufactured using a single-mould lamination process to ensure structural continuity and maximum control over fibre orientation. Aerodynamic profiles developed and validated through CFD simulations, featuring an “All-Round” geometry and a responsive, stable and versatile setup for racing and long-distance riding. Compatible with tyres up to 32 mm wide.

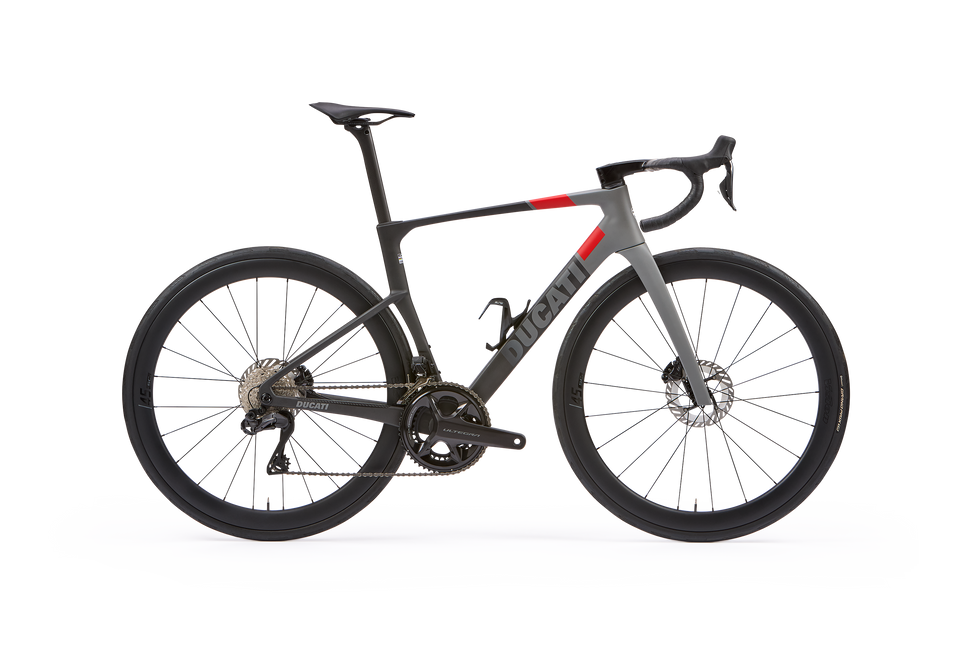

Available versions: Monoscocca R
Equipped with a Shimano Ultegra Di2 electronic groupset, Vision SC 45 carbon fiber wheels, and a Vision Metron 5D SMR integrated cockpit, it offers an ideal balance of performance, precision, and reliability.
Size guide
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Reach (A) | 377 | 382.2 | 388.3 | 397.2 | 406 |
| Stack (B) | 519 | 533 | 550 | 567 | 583 |
| Seat Tube (C) | 435 | 460 | 485 | 510 | 534 |
| Effective Seat Tube Angle (D) | 78.7° | 78.2° | 77.8° | 77.5° | 77.1° |
| Virtual Seat Tube Angle (E) | 75.7° | 75.2° | 74.8° | 74.5° | 74.2° |
| Saddle Height For Virtual Seat Tube Angle (F) | 675 | 700 | 730 | 760 | 795 |
| Effective Top Tube (G) | 517 | 531 | 546 | 563 | 581 |
| Virtual Top Tube (H) | 512 | 526 | 539 | 556 | 574 |
| Head Tube (I) | 109 | 122 | 138 | 152 | 169.8 |
| Head Tube Angle (L) | 71.4° | 71.8° | 72.3° | 73° | 73.3° |
| Chain Stay (M) | 410 | 410 | 410 | 411 | 412 |
| Front to Center (N) | 582.5 | 588.7 | 595.6 | 598.9 | 610 |
| Wheelbase (O) | 981.7 | 988 | 994.8 | 999.2 | 1012 |
| BB Drop Front/Rear (P) | 72 | 72 | 72 | 72 | 70 |
| Estimated BB Height (Q) | 272 | 272 | 272 | 272 | 274 |
| Trail (R) | 65.1 | 62.6 | 59.4 | 59.1 | 57.3 |
| Fork Length (S) | 377 | 377 | 377 | 377 | 377 |
| Rake (T) | 48 | 48 | 48 | 44 | 44 |
Carbon Monocoque Frame
Made in Italy carbon fibre monocoque frame, manufactured using a single-mould lamination process to ensure structural continuity and maximum control over fibre orientation. Aerodynamic profiles developed and validated through CFD simulations, featuring an “All-Round” geometry and a responsive, stable and versatile setup for racing and long-distance riding. Compatible with tyres up to 32 mm wide.
Shimano Ultegra Di2
The complete Shimano Ultegra Di2 groupset combines high-level performance, precision and reliability in a platform designed for high-performance road cycling. The Di2 electronic system delivers fast, precise and perfectly repeatable shifting, even under load, ensuring smooth and efficient drivetrain management in every riding situation.
Vision SC 45 Wheels
The Vision SC 45 carbon wheels feature a 45 mm rim depth and a 23 mm internal width, optimized for modern 28–32 mm tires to deliver greater comfort, stability and low rolling resistance. The Tubeless Ready construction, hubs with sealed bearings and Straight Pull aero spokes ensure excellent smoothness, reliability and efficient power transfer. With a weight of approximately 1,590 g per pair, the SC 45 wheels are ideal for road use, from everyday rides to racing.
Continental Grand Prix TR
30 mm Tubeless Ready tyres featuring the BlackChili compound, designed to deliver an effective balance of grip, low rolling resistance and puncture protection.

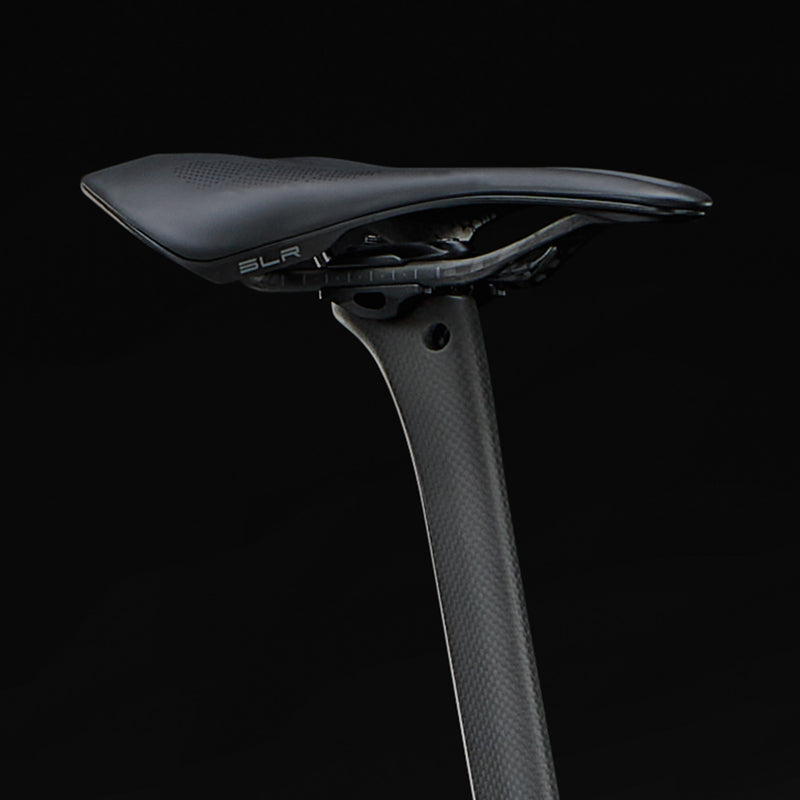

Selle Italia SLR Carbon L3
A high-performance saddle designed to combine lightness, support and comfort on the most demanding rides. The carbon construction helps reduce weight and increase stiffness, while the ergonomic shape promotes a stable and efficient riding position, providing support and control even during the most intense efforts.

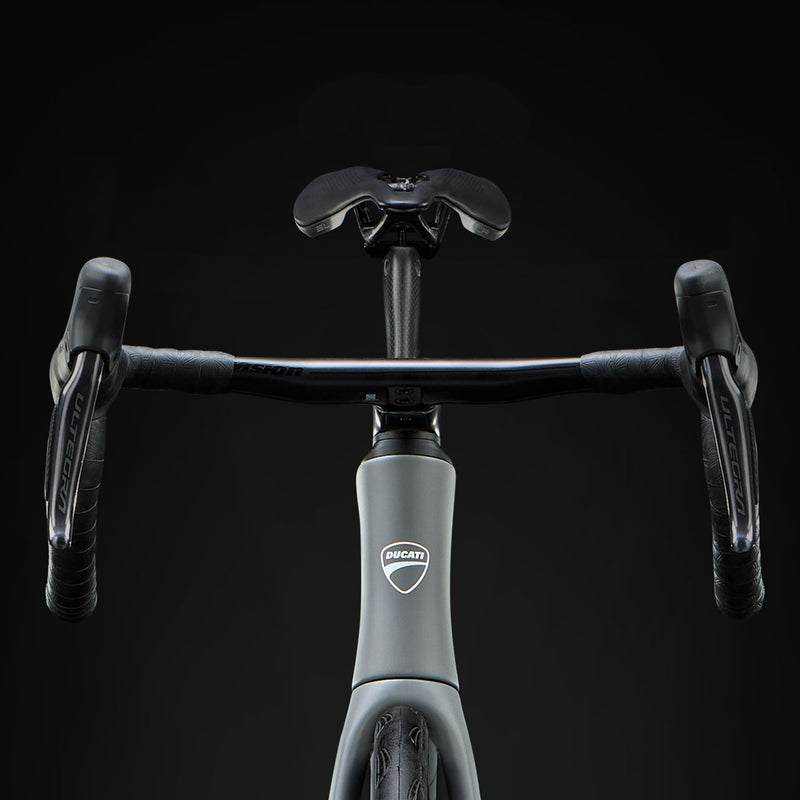

Vision Metron 5D SMR Integrated Cockpit
Integrated carbon fibre cockpit designed to maximise aerodynamics, stiffness and ergonomics. The distinctive Aero-Ergo shape with a 10° forward angle promotes a natural arm position, improving comfort, breathing and control. The SMR (Semi-Integrated Cable Routing) system enables semi-integrated cable routing, delivering a clean look and helping reduce aerodynamic drag. Built from high-modulus carbon, it offers an excellent stiffness-to-weight ratio, making it ideal for performance-focused road cyclists.

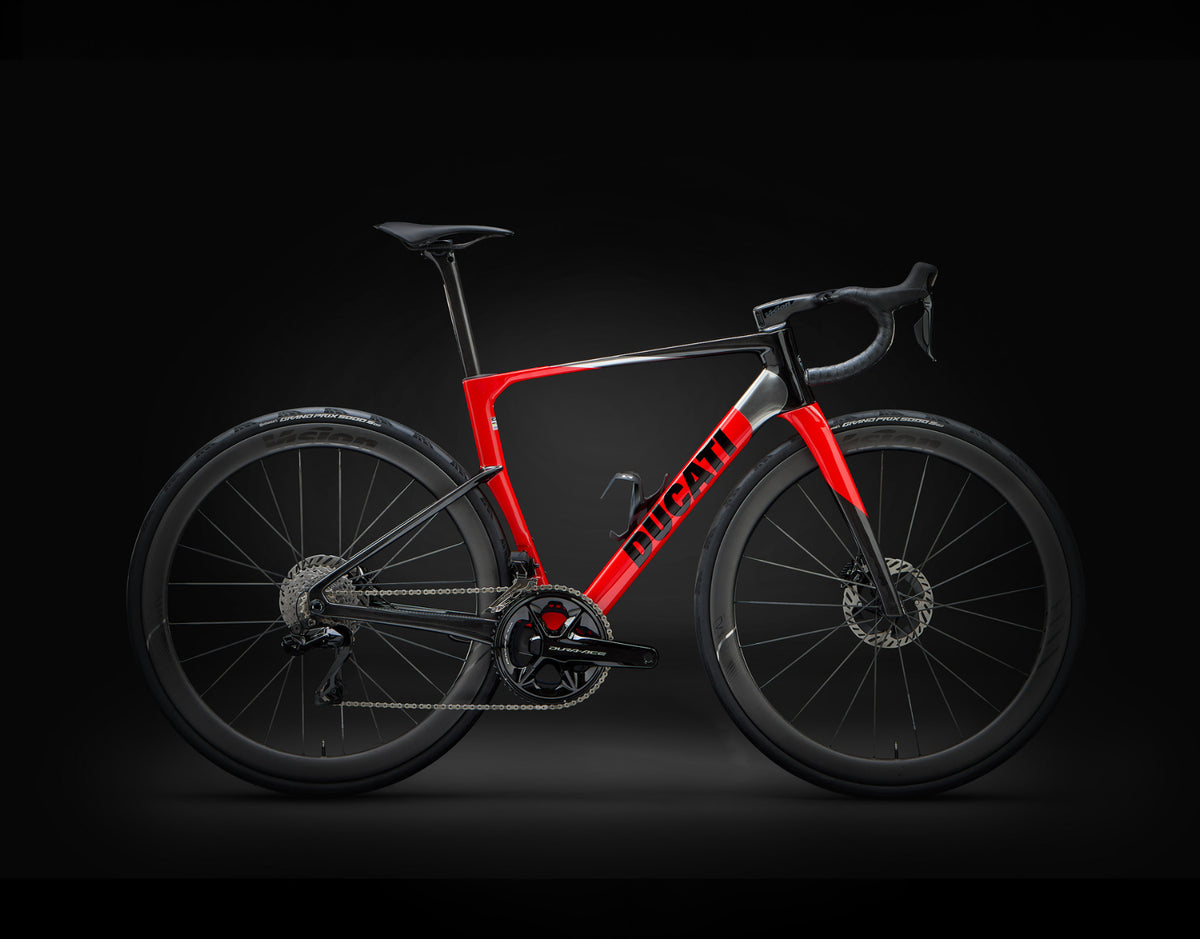

Available versions: Monoscocca RR
Equipped with a Shimano Dura-Ace Di2 electronic groupset, Vision RS 45 wheels with carbon spokes, and a Vision Metron 5D ACR EVO integrated cockpit, it combines the very best of racing technology to deliver benchmark performance, precision, and responsiveness.
Size guide
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Reach (A) | 377 | 382.2 | 388.3 | 397.2 | 406 |
| Stack (B) | 519 | 533 | 550 | 567 | 583 |
| Seat Tube (C) | 435 | 460 | 485 | 510 | 534 |
| Effective Seat Tube Angle (D) | 78.7° | 78.2° | 77.8° | 77.5° | 77.1° |
| Virtual Seat Tube Angle (E) | 75.7° | 75.2° | 74.8° | 74.5° | 74.2° |
| Saddle Height For Virtual Seat Tube Angle (F) | 675 | 700 | 730 | 760 | 795 |
| Effective Top Tube (G) | 517 | 531 | 546 | 563 | 581 |
| Virtual Top Tube (H) | 512 | 526 | 539 | 556 | 574 |
| Head Tube (I) | 109 | 122 | 138 | 152 | 169.8 |
| Head Tube Angle (L) | 71.4° | 71.8° | 72.3° | 73° | 73.3° |
| Chain Stay (M) | 410 | 410 | 410 | 411 | 412 |
| Front to Center (N) | 582.5 | 588.7 | 595.6 | 598.9° | 610 |
| Wheelbase (O) | 981.7 | 988 | 994.8 | 999.2 | 1012 |
| BB Drop Front/Rear (P) | 72 | 72 | 72 | 72 | 70 |
| Estimated BB Height (Q) | 272 | 272 | 272 | 272 | 274 |
| Trail (R) | 65.1 | 62.6 | 59.4 | 59.1 | 57.3 |
| Fork Length (S) | 377 | 377 | 377 | 377 | 377 |
| Rake (T) | 48 | 48 | 48 | 44 | 44 |

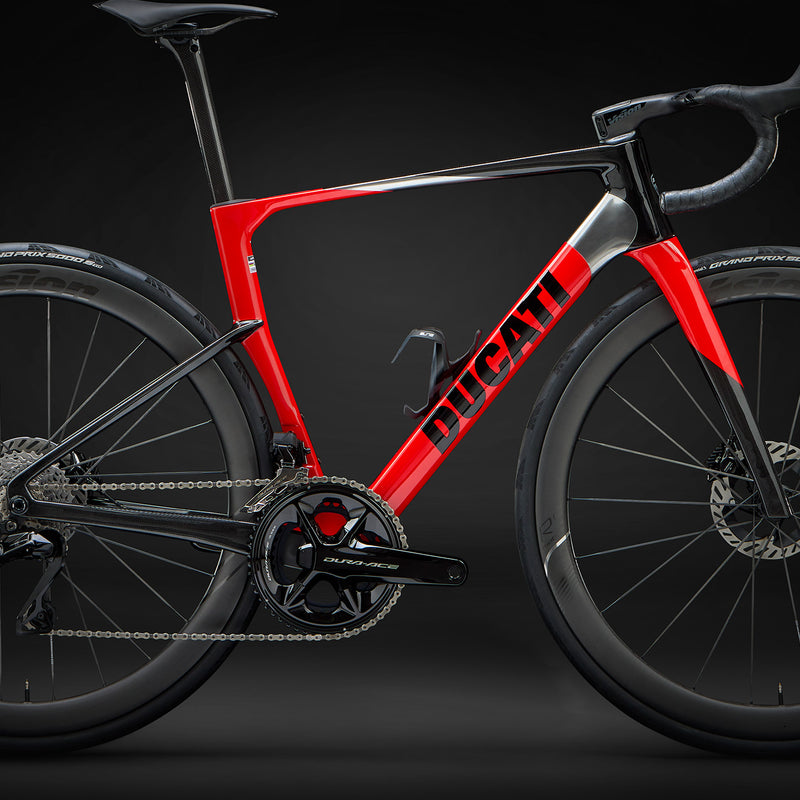

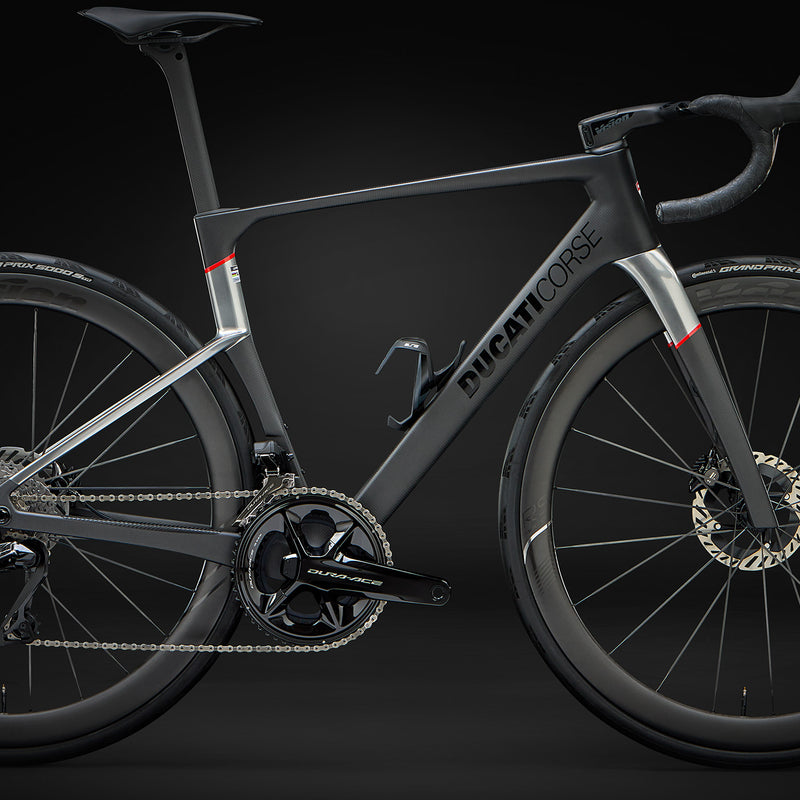

Carbon Monocoque Frame
Made in Italy carbon fibre monocoque frame, manufactured using a single-mould lamination process to ensure structural continuity and maximum control over fibre orientation. Aerodynamic profiles developed and validated through CFD simulations, featuring an “All-Round” geometry and a responsive, stable and versatile setup for racing and long-distance riding. Compatible with tyres up to 32 mm wide.

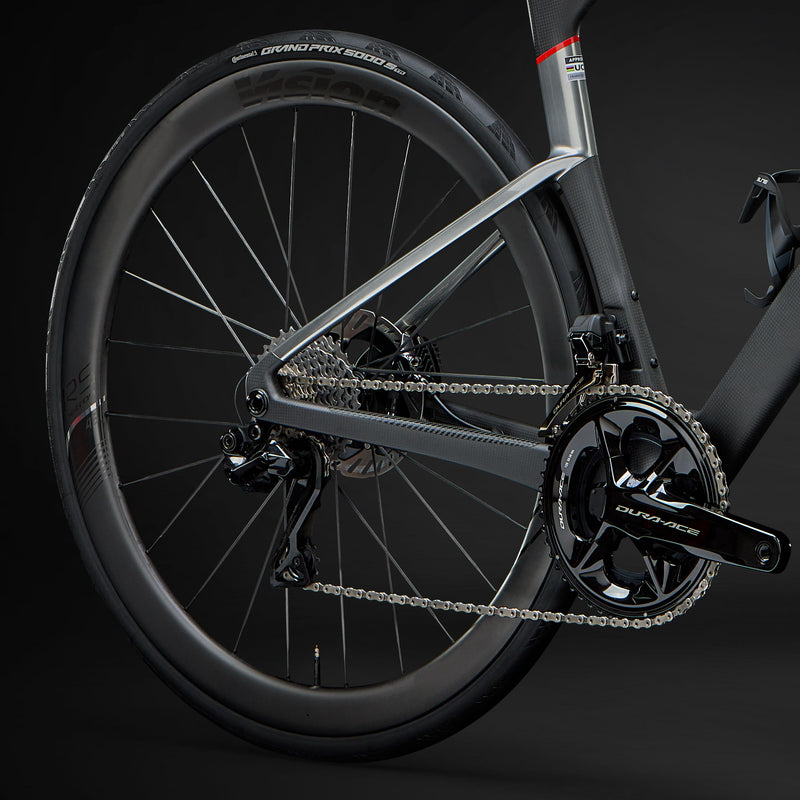

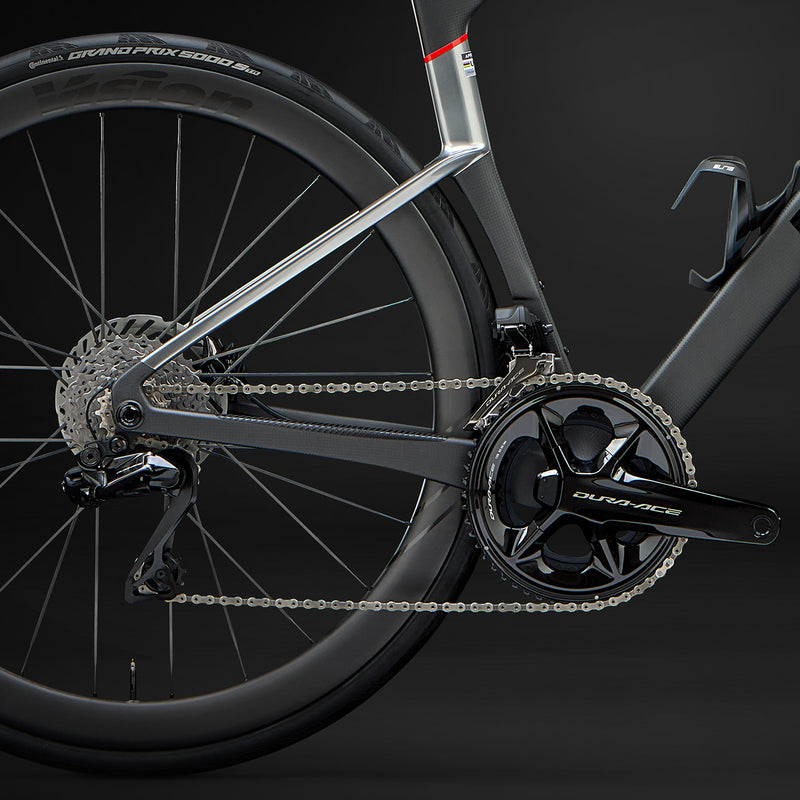

Shimano Dura-Ace Di2 12-Speed with Power Meter
The Shimano Dura-Ace Di2 12-speed groupset represents the pinnacle of Shimano road drivetrain technology, engineered to deliver instantaneous, precise and reliable electronic shifting even under load. Di2 technology ensures exceptionally fast response, while the HYPERGLIDE+ system contributes to smooth and efficient gear changes. The integrated power meter enables accurate monitoring of performance data directly from the crankset, providing an advanced tool for analysing effort and optimising training. The braking system with ICE technology completes the groupset, ensuring effective heat management together with consistent, reliable and quiet braking performance.

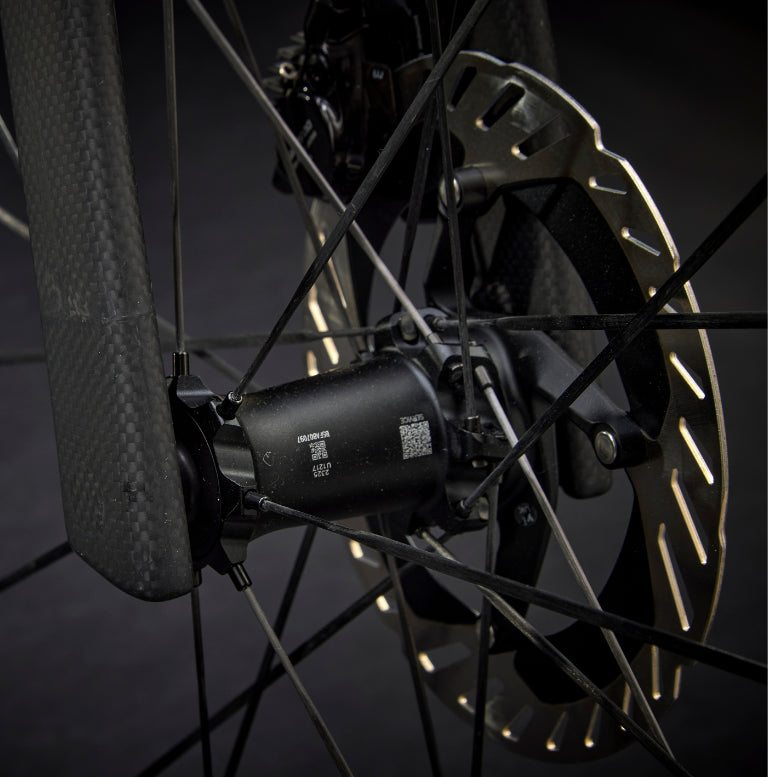

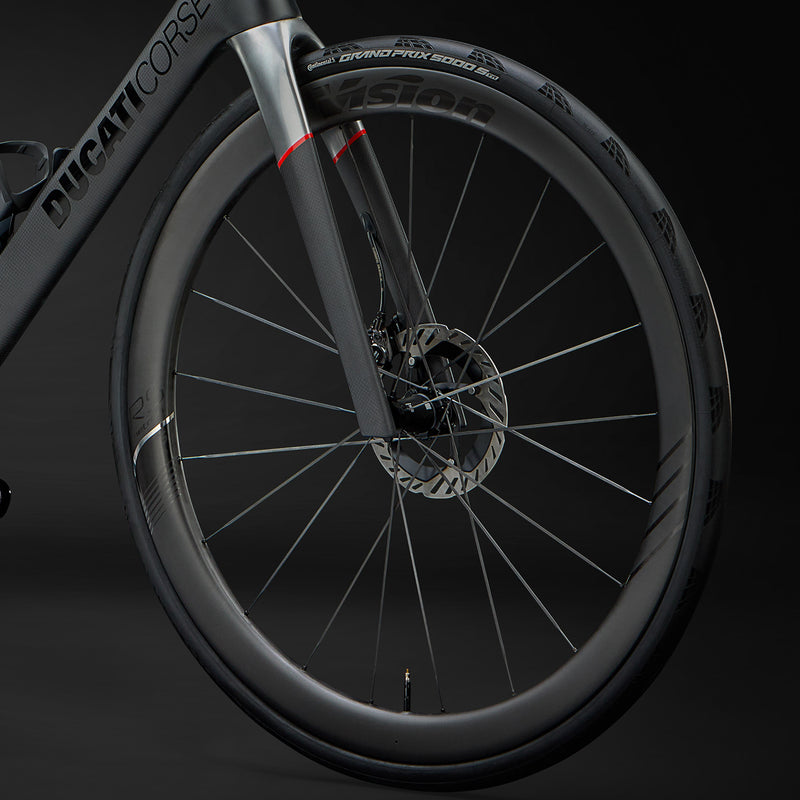

Vision Metron 45 RS Wheels
The Vision Metron 45 RS feature a 45 mm full-carbon rim with a 23 mm internal width, engineered to optimise the balance between aerodynamic efficiency, weight and directional stability. The construction uses Aero Bladed carbon spokes with Direct Pull attachment, in a 21-spoke front and 24-spoke rear configuration.
The system is completed by Vision V-1000 PRS hubs, featuring a 72-tooth engagement mechanism and sealed bearings. The tubeless-ready construction supports the use of modern wider tyres, taking advantage of the 23 mm internal rim width to provide proper bead support and a more consistent tyre profile.
With a claimed weight of approximately 1,290 g per pair, the Metron 45 RS are designed to reduce peripheral mass while maintaining high overall wheel stiffness. The 45 mm rim profile offers a technical balance between reduced aerodynamic drag and limited sensitivity to crosswinds, making the wheelset suitable for performance-oriented road use across flat terrain, rolling routes and climbs.

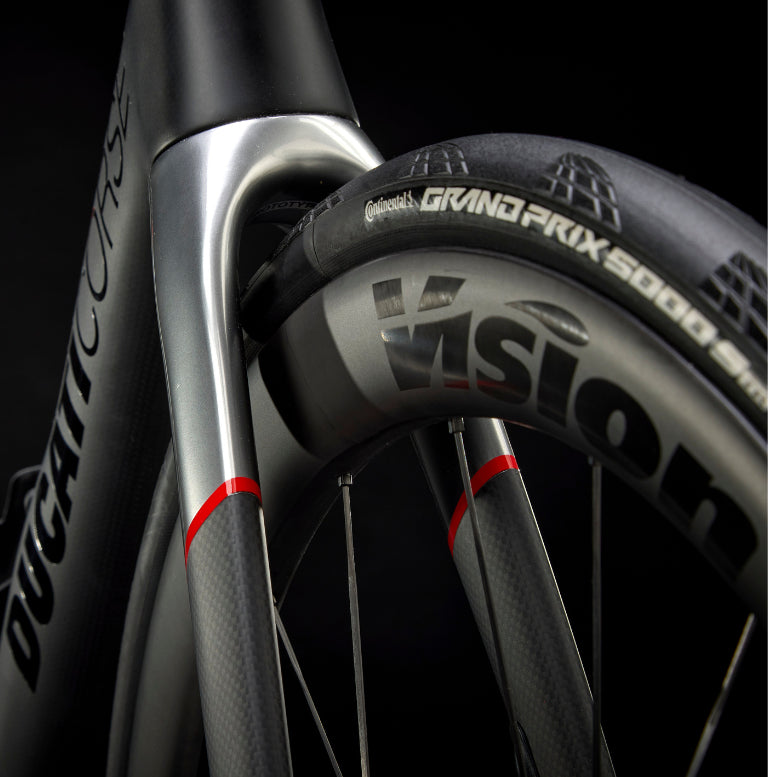

Continental Grand Prix 5000 S TR
The Continental Grand Prix 5000 S TR 30 mm is a high-performance road tyre designed to deliver low rolling resistance, grip and comfort. Its Tubeless Ready construction, combined with Black Chili compound and Vectran Breaker puncture protection, provides an excellent balance of speed, traction and puncture resistance. Active Comfort technology improves vibration absorption, while Lazer Grip enhances control when cornering. The 30 mm width combines efficiency and comfort, helping to make the bike responsive, stable and fast.
Selle Italia SLR Carbon L3
A high-performance saddle designed to combine lightness, support and comfort on the most demanding rides. The carbon construction helps reduce weight and increase stiffness, while the ergonomic shape promotes a stable and efficient riding position, providing support and control even during the most intense efforts.

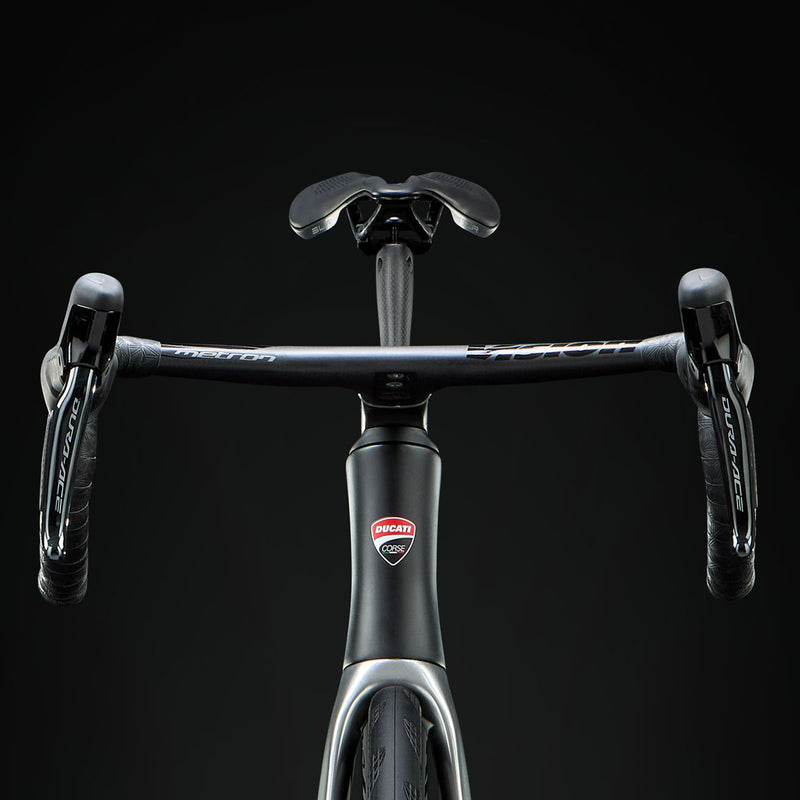

Vision Metron 5D ACR Evo Integrated Cockpit
The Vision Metron 5D ACR EVO is an integrated cockpit made from 3K carbon fibre, designed to deliver maximum integration, stiffness and aerodynamic performance.
The handlebar and stem are built as a single monocoque structure, creating a clean and exceptionally rigid front end.
The ACR system enables fully internal routing of cables and hoses through the handlebar and headset.
Its Compact geometry, with an 80 mm reach and 125 mm drop, provides an ergonomic and easily manageable riding position.
The stem features a -6° angle, ideal for a sporty, race-oriented setup.
The lowered upper section helps reduce frontal area and improve aerodynamic efficiency.
The 3K carbon construction offers an excellent stiffness-to-weight ratio.
Compatible with major electronic drivetrain systems, including Shimano Di2.
A high-end cockpit designed to complement performance-oriented road bikes where integration, efficiency and a clean aesthetic are key.
